Thermal Transfer Ribbons

01 Range

Grades and ranges

• IIMAK

  Wax

  Listed in PACODE’s range. Grade details on request.

• IIMAK

  Wax-resin

  Listed in PACODE’s range. Grade details on request.

• IIMAK

  Resin

  Listed in PACODE’s range. Grade details on request.

• IIMAK

  Near edge

  Listed in PACODE’s range. Grade details on request.

• IIMAK

  GP725 resin-enhanced wax

  High-performance wax thermal transfer ribbon.

  Receivers

  Paper, vellum, matte coated, semi-gloss, gloss

  Film / total thickness

  4.5 µm / 8.6 µm

  Printhead

  Flathead

  Max. speed

  14 IPS (355 mm/s)

  Ink melt point

  65 °C

  Compliance

  REACH, RoHS, FDA GRAS, FDA 21CFR175, ISEGA

  Datasheet (PDF) — opens in a new tab Source: PACODE-hosted datasheet (PDF)

• IIMAK

  UV-invisible general-purpose resin

  Invisible version of SP330: the printed image fluoresces under UV light, for brand authentication and covert track & trace. Listed for automotive, medical, pharmaceutical and durable goods.

  Receivers

  PP, PET, Fasson 72967, Flexcon 31800 / 22720 / 21830

  Film / total thickness

  5.7 µm / 7.6 µm

  Printhead

  Flathead

  Max. speed

  6 IPS (152 mm/s)

  Ink melt point

  80 °C

  Datasheet (PDF) — opens in a new tab Source: PACODE-hosted datasheet (PDF)

• IIMAK

  Colour ribbons

  Colour ribbons across wax (DC100), wax-resin (DC200), resin (DC300, DC400) and near-edge wax-resin (NETColour) types — the manufacturer quotes over 450 SKUs in 50 colours.

  Datasheet (PDF) — opens in a new tab Source: PACODE-hosted datasheet (PDF)

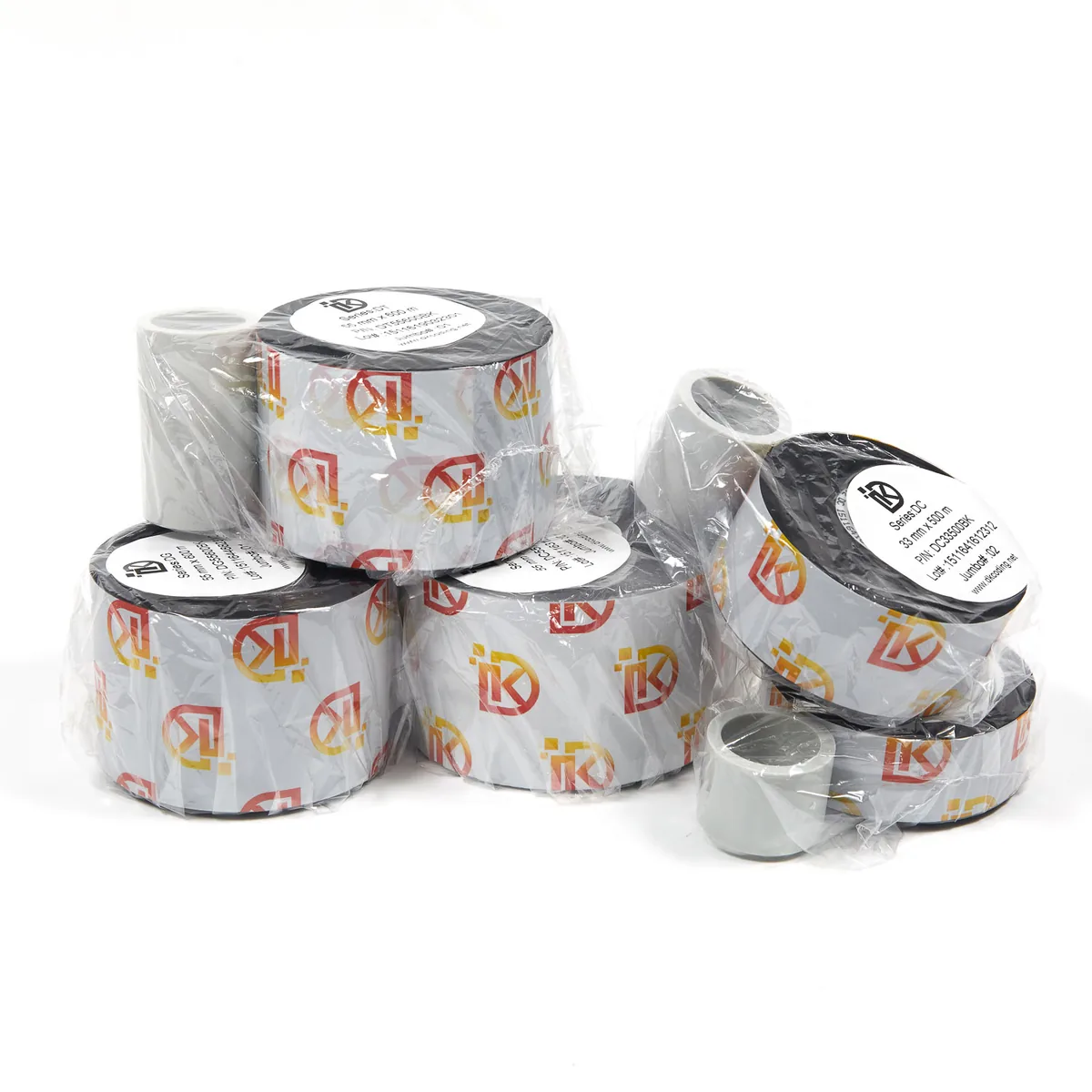

• Dikai

  Thermal transfer ribbons

  Listed in PACODE’s range. Details on request.

Values are taken from the manufacturer datasheets published on PACODE’s website. Grades marked “details on request” are listed by PACODE without published data.
