MarkoprintHandheld Inkjet Printers

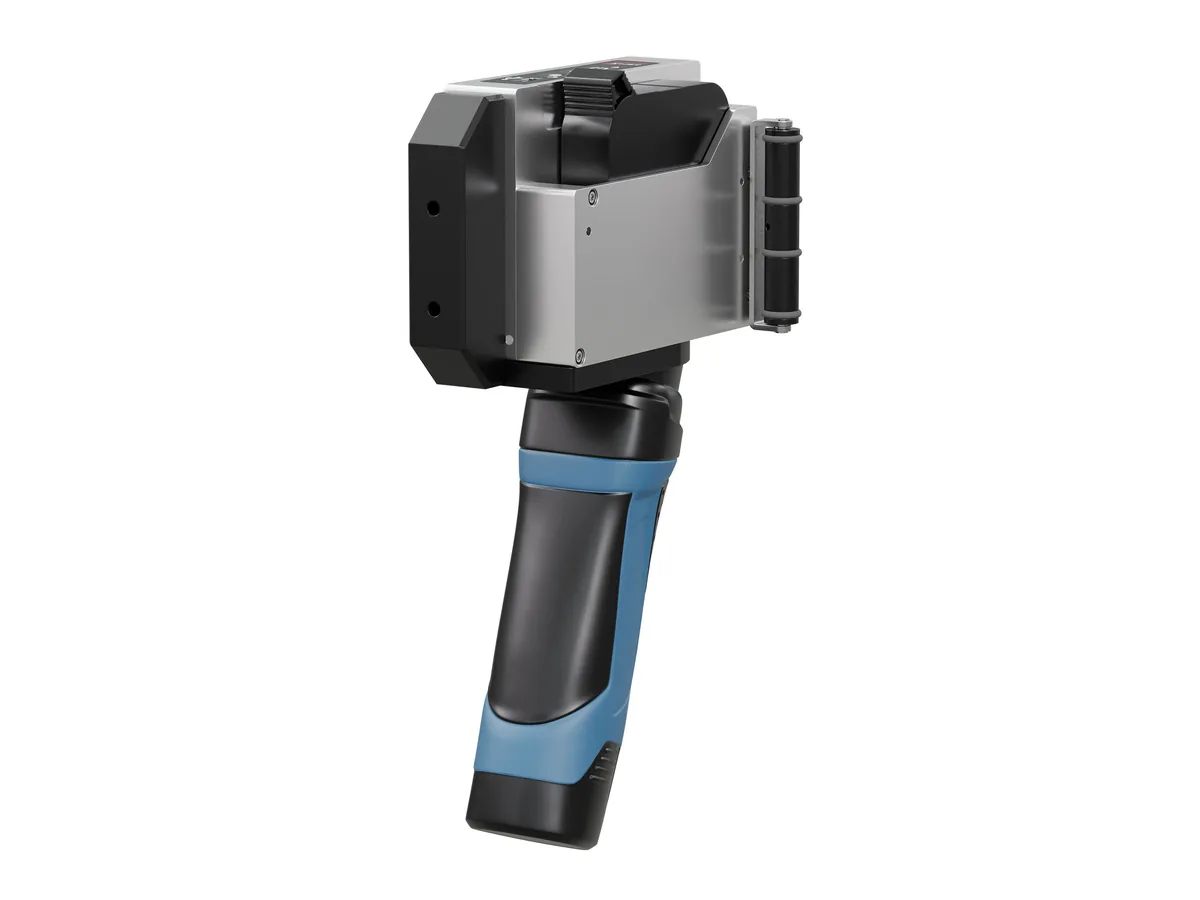

Markoprint X1JET HP HandHold
A battery-powered HP Class printer for high-resolution marking in several locations, without being fixed to a production line.
- Battery powered
- High resolution
- Automatic cartridge detection
- Portable
Available asX1JET HP HandHoldX1JET HP HandHold WiFi
- Technology
- HP Class TIJ
- Max. print height
- 12.5 mm
- Resolution
- Up to 600 dpi
- Max. speed
- 90 m/min (Pro)
- Protection
- IP40
- Weight
- 1.2 kg
Overview
What X1JET HP HandHold does
X1JET HP HandHold brings HP Class thermal inkjet print quality to places a fixed coder cannot reach. It runs on a long-life battery and prints high-resolution text and images up to 12.5 mm high; print images are loaded by USB stick.
The printer detects the inserted cartridge, ink type and fill level and sets the ideal parameters itself. A WiFi version is available for maximum mobility.
- A
X1JET HP HandHold
Battery operated; print images uploaded by USB stick.
- B
X1JET HP HandHold WiFi
WiFi version for maximum mobility.
Applications
Where it is used
- Mobile & manual marking Marking pallets, timber, parts and uneven surfaces where a fixed printer cannot reach. Used in Timber & wood Explore
- Date & batch coding Manufacturing and expiry dates, batch and lot numbers on packs, pouches, foil and labels. Used in Food & beverage, Pharmaceutical, Chemicals, Timber & wood Explore
- Barcode & 2D code printing 1D barcodes and DataMatrix codes with counters, date offsets and variable data. Used in Pharmaceutical, Food & beverage, Building materials Explore
In real use
-
Markoprint X1JET HP HandHold coding a plastic box
Photos: manufacturer (Markoprint) application examples.
Capabilities
What can you print?
Content X1JET HP HandHold can print, as stated in its specification — with generated samples for illustration.
- Text & logosHandHold Pro configuration
- Counter, date / time, date offsetHandHold Pro configuration
- 1D barcodes & 2D codesHandHold Pro configuration
EXP 09/2028
SN 0142
Illustrations generated by PACODE to show the kinds of content X1JET HP HandHold can print according to its specifications — not photographs of actual print output. Sample data is fictitious.
Why X1JET HP HandHold
Features and what they mean for your line
- 01
Battery powered
A long-life battery provides power for printing over an extended period.
- 02
High resolution
HP Class printing technology for markings up to 12.5 mm high.
- 03
Automatic cartridge detection
Cartridge, ink and fill level are detected and parameters set automatically.
- 04
Portable
Lightweight and compact — print in multiple locations.
Specifications
Technical data
Compare Handheld models| Specification | X1JET HP HandHold |
|---|---|
| Supported printing technology | HP |
| Max. number of printheads | 1 |
| Max. number of production lines | 1 |
| Display | No |
| Dimensions in mm (length/width/height) | 270/145/100 |
| Weight in kg | 1.2 |
| IP Protection | IP40 |
| Max. printing height in mm | 12.5 |
| External sensor | No |
| Internal sensor | Yes |
| Rotary encoder | No |
| Status/alarm outputs | No |
| Potential free contacts | No |
| Inputs | No |
| USB A for USB stick | Yes |
| USB interface | No |
| EIA 232 | No |
Source: PACODE website — “Specifications & Comparison (X1JET systems)” table
| Specification | HandHold Pro |
|---|---|
| Max. printing speed in m/min (with 300 dpi) | 90/60* |
| Max. print resolution (horizontal) | 50-900 |
| Max. print resolution (vertical) | 300/600 |
| Layout length in m | 2 |
| Text / Logos | Yes |
| Counter | Yes |
| Date / Time | Yes |
| Date offset | Yes |
| Variables | No |
| Action fields | Yes |
| Barcodes (1D) | Yes |
| 2D Codes | Yes |
| USB stick data transfer | Yes |
| Ethernet interface | Yes |
| EIA232 | Yes |
| Password Protection | No |
| Configurable inputs | Yes |
| DBPrint | No |
* Maximum recommended speed for barcode applications (as defined in PACODE’s comparison tables).
Source: PACODE website — “Specifications & Comparison (X1JET systems)” table
Integration & connectivity
- Print images uploaded by USB stick; WiFi version available.
- Internal sensor; no external sensor, encoder or I/O connections (comparison table).
