MarkoprintLarge-Character Inkjet Printers

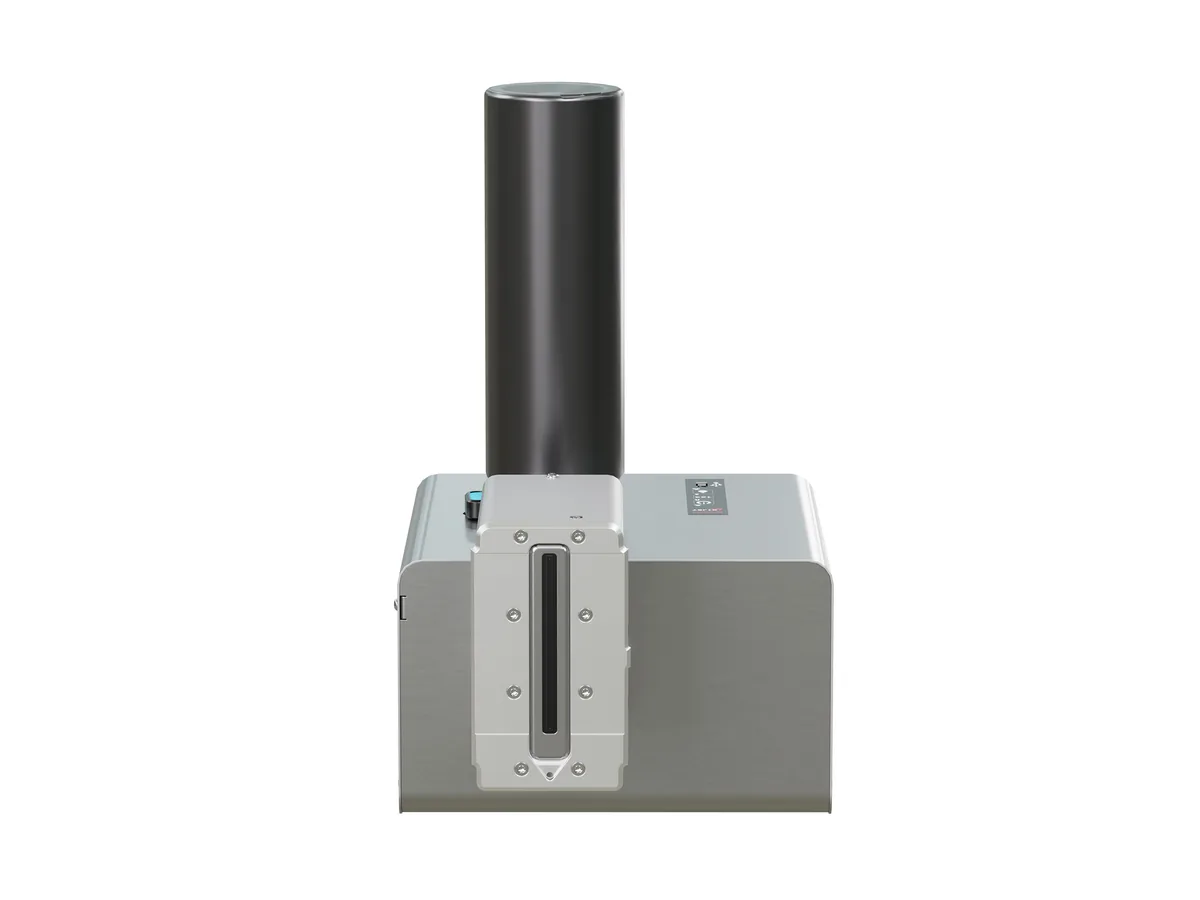

Markoprint X1JET XR
A stand-alone XR Class piezo inkjet system printing up to 71 mm high — suited to painted folding boxes and absorbent surfaces.
- Up to 71 mm
- 500 selectable jets
- Uninterrupted ink change
- Easy cleaning
- Technology
- XR Class piezo
- Max. print height
- 71 mm
- Resolution
- 180 dpi vertical
- Max. speed
- 67 m/min (Pro)
- Printheads
- 1
- Connectivity
- Ethernet, EIA 232 and USB stick
Overview
What X1JET XR does
X1JET XR controls an XR Class piezo printhead with 500 individually selectable jets, printing up to 71 mm high without offset — from small fonts of 2 mm to high-resolution graphics and logos.
Its oil-based XR 980 ink suits slightly absorbent and absorbent surfaces, and its short drying time allows printing on painted folding boxes. An internal reservoir means the 500 ml ink bottle can be changed without interrupting production.
- A
Compact
Printhead mounted for horizontal marking.
- B
Vario
Printhead rotatable by 90° anti-clockwise.
- C
Top
Printhead connected to the ink system by a 1,000 mm hose.
Applications
Where it is used
- Carton & case coding Large characters, logos and codes printed directly onto outer cartons and folding boxes. Used in Food & beverage, Chemicals, Building materials Explore
- Barcode & 2D code printing 1D barcodes and DataMatrix codes with counters, date offsets and variable data. Used in Pharmaceutical, Food & beverage, Building materials Explore
In real use
-
Markoprint X1JET XR coding on wood
Photos: manufacturer (Markoprint) application examples.
Capabilities
What can you print?
Content X1JET XR can print, as stated in its specification — with generated samples for illustration.
- Text & logosAll configurations
- Date / timeBasic configuration and above
- Counter & date offsetAdvanced configuration and above
- 1D barcodesAdvanced and Pro configurations
- 2D codesPro configuration
- DBPrintPro configuration
Illustrations generated by PACODE to show the kinds of content X1JET XR can print according to its specifications — not photographs of actual print output. Sample data is fictitious.
Materials
Suitable materials
Only surfaces and inks stated in PACODE’s or the manufacturer’s published information are listed.
Surfaces
-
Slightly absorbent and absorbent surfaces; painted folding boxes.
Source: PACODE website — previous product page (/x1jet-hp-xr/)
Inks
-
Oil-based XR 980 ink.
Source: PACODE website — previous product page (/x1jet-hp-xr/)
Why X1JET XR
Features and what they mean for your line
- 01
Up to 71 mm
Maximum print height of 71 mm with no offset in the printed image; small fonts from 2 mm.
- 02
500 selectable jets
High-resolution graphics and logos up to 360 × 180 dpi.
- 03
Uninterrupted ink change
Internal reservoir; 500 ml ink bottle.
- 04
Easy cleaning
Integrated maintenance station for jet cleaning.
Specifications
Technical data
Compare Large-character models| Specification | X1JET XR |
|---|---|
| Supported printing technology | XR |
| Max. number of printheads | 1 |
| Max. number of production lines | 1 |
| Display | No |
| Dimensions in mm (length/width/height) | 308/182/228 |
| Weight in kg | 5 |
| IP Protection | IP40 |
| Max. printing height in mm | 71 |
| External sensor | Yes |
| Internal sensor | No |
| Rotary encoder | Yes |
| Status/alarm outputs | 4 |
| Potential free contacts | No |
| Inputs | 4 |
| USB A for USB stick | Yes |
| USB interface | No |
| EIA 232 | Yes |
Source: PACODE website — “Specifications & Comparison (X1JET systems)” table
| Specification | Basic | Advanced | Pro | Ultimate HiS** | |
|---|---|---|---|---|---|
| Max. printing speed in m/min (with 300 dpi) | 30 | 30 | 60 | 67/60* | No |
| Max. print resolution (horizontal) | 50-900 | 50-900 | 50-900 | 50-900 | 50-900 |
| Max. print resolution (vertical) | 180 | 180 | 180 | 180 | 180 |
| Layout length in m | 1 | 1 | 1 | 2 | 4 |
| Text / Logos | Yes | Yes | Yes | Yes | Yes |
| Counter | No | No | Yes | Yes | Yes |
| Date / Time | No | Yes | Yes | Yes | Yes |
| Date offset | No | No | Yes | Yes | Yes |
| Variables | No | No | with HMI | with HMI | with HMI |
| Action fields | No | No | Yes | Yes | Yes |
| Barcodes (1D) | No | No | Yes | Yes | Yes |
| 2D Codes | No | No | No | Yes | Yes |
| USB stick data transfer | Yes | Yes | Yes | Yes | Yes |
| Ethernet interface | Yes | Yes | Yes | Yes | Yes |
| EIA232 | Yes | Yes | Yes | Yes | Yes |
| Password Protection | No | No | No | No | Yes |
| Configurable inputs | Yes | Yes | Yes | Yes | Yes |
| DBPrint | No | No | No | Yes | Yes |
* Maximum recommended speed for barcode applications (as defined in PACODE’s comparison tables).
** The “HiS” footnote is not defined on the current PACODE website.
Source: PACODE website — “Specifications & Comparison (X1JET systems)” table
Integration & connectivity
- Interfaces: Ethernet, EIA 232 and USB stick.
- 4 inputs and 4 status/alarm outputs; external sensor and rotary encoder.
