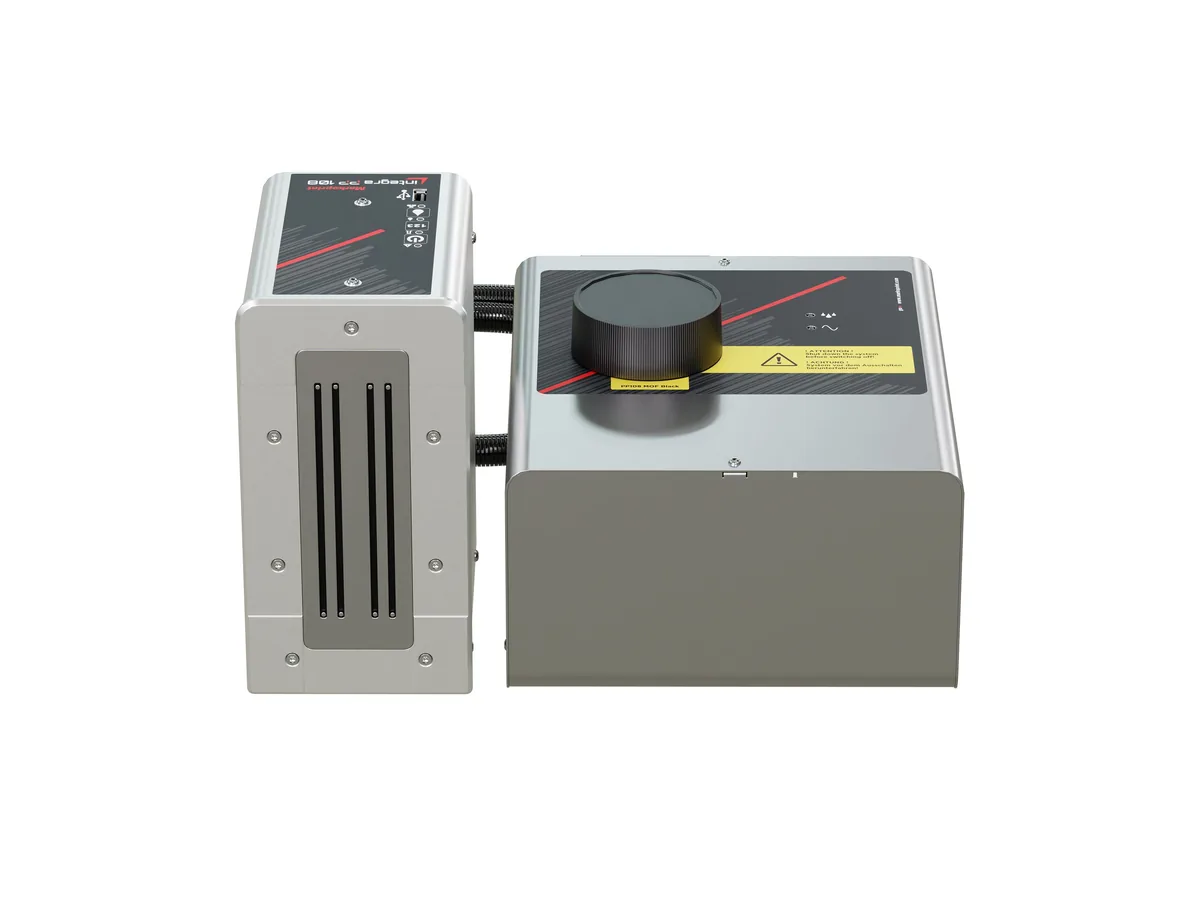

Markoprint Integra PP 108
Markoprint’s first PP Class piezo printer: a circulating ink system keeps the nozzles free of air for a permanently clean print image.
- Circulating ink
- 360 dpi vertical
- Up to 150 m/min
- Level-independent
- Technology
- PP Class piezo
- Resolution
- 360 dpi
- Max. speed
- 150 m/min (Ultimate)
- Printheads
- 1
- Protection
- IP40
- Connectivity
- USB A (USB stick), EIA 232 and Ethernet
Overview
What Integra PP 108 does
Integra PP 108 circulates its ink, automatically removing air from the nozzle rows, so air inclusions cannot form and the print image stays clean. The system is level-independent — the ink tank can sit above, below or level with the printhead.
It prints small fonts from 1 mm as well as high-resolution graphics, logos and greyscale, at up to 150 m/min at 360 dpi in the Ultimate configuration, with a pigmented, mineral-oil-free (MOF) oil ink. PACODE lists it for printing on absorbent surfaces in the food industry.
Applications
Where it is used
- Carton & case coding Large characters, logos and codes printed directly onto outer cartons and folding boxes. Used in Food & beverage, Chemicals, Building materials Explore
- Barcode & 2D code printing 1D barcodes and DataMatrix codes with counters, date offsets and variable data. Used in Pharmaceutical, Food & beverage, Building materials Explore
In real use
-
Markoprint integra PP 108 coding on wood
Photos: manufacturer (Markoprint) application examples.
Capabilities
What can you print?
Content Integra PP 108 can print, as stated in its specification — with generated samples for illustration.
- Date / timeBasic configuration and above
- Counter, date offset, 1D barcodesAdvanced configuration and above
- 2D codes & DBPrintPro and Ultimate configurations
- Greyscale printingStated for Integra PP 108
Illustrations generated by PACODE to show the kinds of content Integra PP 108 can print according to its specifications — not photographs of actual print output. Sample data is fictitious.
Materials
Suitable materials
Only surfaces and inks stated in PACODE’s or the manufacturer’s published information are listed.
Surfaces
-
Absorbent surfaces.
Source: PACODE website — previous product page (/integra-pp-108/)
Inks
-
Pigmented MOF oil ink (mineral-oil-free).
Source: PACODE website — previous product page (/integra-pp-108/)
Why Integra PP 108
Features and what they mean for your line
- 01
Circulating ink
Air inclusions in the nozzle rows are not possible.
- 02
360 dpi vertical
Small fonts from 1 mm, high-resolution graphics, logos and greyscale.
- 03
Up to 150 m/min
At 360 dpi, in the Ultimate configuration.
- 04
Level-independent
Ink tank above, below or level with the printhead; large internal reservoir.
Specifications
Technical data
Compare Large-character models| Specification | integra PP 108 |
|---|---|
| Supported printing technology | PP |
| Max. number of printheads | 1 |
| Max. number of production lines | 1 |
| Display | No |
| Dimensions in mm (length/width/height) | 142/95/185 |
| Weight in kg | 6 |
| IP Protection | IP40 |
| External sensors | 1 |
| Internal sensors | No |
| Rotary encoder | 1 |
| Status/alarm outputs | 4 |
| Potential free contacts | No |
| Inputs | 4 |
| USB A for USB stick | Yes |
| USB interface | No |
| EIA 232 | Yes |
Source: PACODE website — “Comparison of our Professional Systems” table
| Specification | Basic | Advanced | Pro | Ultimate | |
|---|---|---|---|---|---|
| Max. printing speed in m/min (with 300 dpi) | 30 | 30 | 60 | 90 | 150 |
| Max. print resolution (horizontal) | 360 (50-900) | 360 (50-900) | 360 (50-900) | 360 (50-900) | 360 (50-900) |
| Max. print resolution (vertical) | 180/360 | 180/360 | 180/360 | 180/360 | 180/360 |
| Layout length in m | 0.97 | 0.97 | 0.97 | 0.97 | 0.97 |
| Text / Logos | Yes | Yes | Yes | Yes | Yes |
| Counter | No | No | Yes | Yes | Yes |
| Date / Time | No | Yes | Yes | Yes | Yes |
| Date offset | No | No | Yes | Yes | Yes |
| Variables | No | No | with HMI | with HMI | with HMI |
| Action fields | No | No | Yes | Yes | Yes |
| Barcodes (1D) | No | No | Yes | Yes | Yes |
| 2D Codes | No | No | No | Yes | Yes |
| Ethernet interface | Yes | Yes | Yes | Yes | Yes |
| Password Protection | No | No | No | No | Yes |
| Configurable inputs | Yes | Yes | Yes | Yes | Yes |
| DBPrint | No | No | No | Yes | Yes |
* Maximum recommended speed for barcode applications (as defined in PACODE’s comparison tables).
Source: PACODE website — “Comparison of our Professional Systems” table
Integration & connectivity
- Interfaces: USB A (USB stick), EIA 232 and Ethernet.
- 1 external sensor, 1 rotary encoder, 4 status/alarm outputs and 4 inputs.
Being confirmed
- Max. print height: being confirmed with the manufacturer — contact PACODE for the current value.
