MarkoprintInkjet Print Controllers

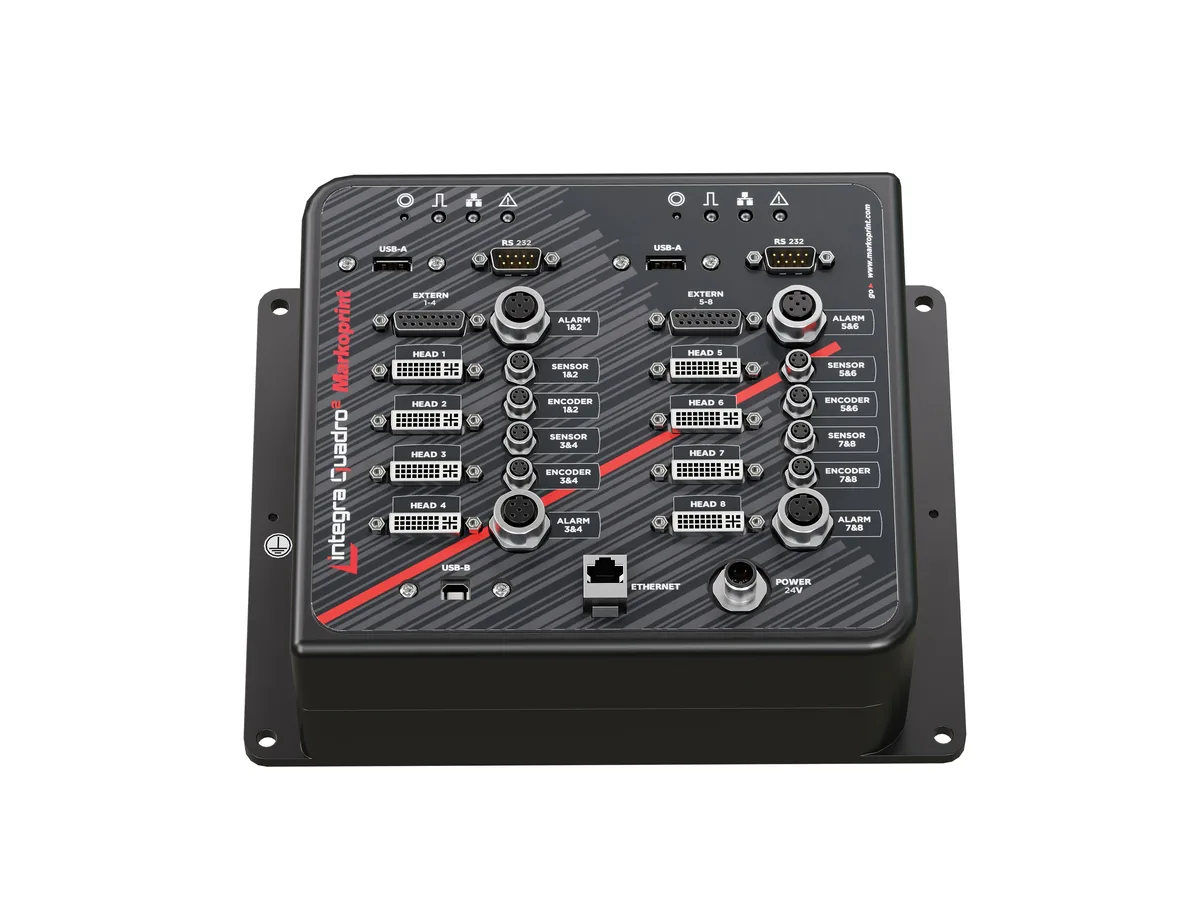

Markoprint Integra Quadro²
A headless inkjet system controller for up to 8 printheads on up to 4 production lines, fed with data from a PC, network or PLC.
- Up to 8 printheads
- Primary + secondary
- Cabinet mounting
- External data
- Technology
- HP · LX · MX · XR
- Printheads
- 8
- Production lines
- 4
- Protection
- IP40
- Weight
- 5.1 kg
- Connectivity
- USB A, USB, EIA 232 and Ethernet
Overview
What Integra Quadro² does
Integra Quadro² is the “big brother” of Integra Quadro: a dual-channel controller without a user interface, for applications where data and task information come from another source — a local PC, a network location, a PLC or another integrated device.
It controls up to eight printheads to mark packages on two sides or on four production lines at once, covering primary and secondary packaging simultaneously, and mounts on a top-hat rail in control cabinets.
Applications
Where it is used
- Barcode & 2D code printing 1D barcodes and DataMatrix codes with counters, date offsets and variable data. Used in Pharmaceutical, Food & beverage, Building materials Explore
- Carton & case coding Large characters, logos and codes printed directly onto outer cartons and folding boxes. Used in Food & beverage, Chemicals, Building materials Explore
Capabilities
What can you print?
Content Integra Quadro² can print, as stated in its specification — with generated samples for illustration.
- Counter, date / time, date offset, variablesAdvanced and Pro
- 1D barcodes & 2D codesAdvanced and Pro
- DBPrint & password protectionPro
EXP 09/2028
SN 0142
Illustrations generated by PACODE to show the kinds of content Integra Quadro² can print according to its specifications — not photographs of actual print output. Sample data is fictitious.
Why Integra Quadro²
Features and what they mean for your line
- 01
Up to 8 printheads
Two-sided marking or up to 4 production lines.
- 02
Primary + secondary
Dual-channel control for both packaging levels at once.
- 03
Cabinet mounting
Top-hat rail installation in control cabinets.
- 04
External data
Driven from a local PC, network, PLC or other device.
Specifications
Technical data
Compare Print controllers models| Specification | integra Quadro² |
|---|---|
| Max. number of printheads | 8 |
| Max. number of production lines | 4 |
| Display | No |
| Dimensions in mm (length/width/height) | 180/354/110 |
| Weight in kg | 5.1 |
| IP Protection | IP40 |
| Max. printing height in mm | HP 100 · LX 100 · MX 800 · XR 568 |
| External sensors | 8 |
| Internal sensors | No |
| Rotary encoder | 4 |
| Status/alarm outputs | 8 |
| Potential free contacts | 8 |
| Inputs | 16 |
| USB A for USB stick | Yes |
| USB interface | Yes |
| EIA 232 | Yes |
Source: PACODE website — “Comparison of our Professional Systems” table
| Specification | Advanced | Pro |
|---|---|---|
| Max. printing speed in m/min (with 300 dpi) | HP 90/60* · LX 90 · MX 90/60* · XR 67/60* | HP 90/180/60* · LX 90/240/90* · MX 90/60* · XR 67/60* |
| Max. print resolution (horizontal) | 50-900 | 50-900 |
| Max. print resolution (vertical) | HP 300/600 · LX 300/600 · MX 64/192 · XR 180 | HP 300/600 · LX 300/600 · MX 64/192 · XR 180 |
| Layout length in m | 1 | 3 |
| Text / Logos | Yes | Yes |
| Counter | Yes | Yes |
| Date / Time | Yes | Yes |
| Date offset | Yes | Yes |
| Variables | Yes | Yes |
| Action fields | Yes | Yes |
| Barcodes (1D) | Yes | Yes |
| 2D Codes | Yes | Yes |
| Ethernet interface | Yes | Yes |
| Password Protection | No | Yes |
| Configurable inputs | Yes | Yes |
| DBPrint | No | Yes |
* Maximum recommended speed for barcode applications (as defined in PACODE’s comparison tables).
Source: PACODE website — “Comparison of our Professional Systems” table
Integration & connectivity
- Data from a local PC, network location, PLC or other integrated device.
- Top-hat rail mounting in control cabinets.
- 8 external sensors, 4 rotary encoders, 8 alarm outputs, 8 potential-free contacts, 16 inputs.
- Interfaces: USB A, USB, EIA 232 and Ethernet.
Being confirmed
- PP Class support: being confirmed with the manufacturer — contact PACODE for the current value.
