MarkoprintThermal Inkjet Printers
Markoprint X1JET HP
A compact all-in-one thermal inkjet coder — controller and printhead in one aluminium housing — for 12.5 mm codes on absorbent and semi-absorbent surfaces.
- All-in-one unit
- Automatic print trigger
- Fast cartridge changes
- Simple operation
Available asX1JET HP (Standard)X1JET HP Premium
- Technology
- HP Class TIJ
- Max. print height
- 12.5 mm
- Resolution
- Up to 600 dpi
- Max. speed
- 90 m/min (Pro)
- Printheads
- 1
- Connectivity
- USB A (USB stick), EIA 232 and Ethernet
Overview
What X1JET HP does
X1JET HP combines the controller and an HP Class printhead in one milled, anodised aluminium housing, so it mounts directly on a conveyor or packing machine without a separate control box. An integrated photo sensor triggers each print, and layouts and parameters move between machines on a USB stick.
PACODE lists it for food, beverage, chemical and pharmaceutical packaging. It codes absorbent and semi-absorbent surfaces with text, dates and — in the Advanced and Pro configurations — barcodes. The Premium version adds a HiSpeed function and WiFi, with a browser-based web interface that needs no extra software.
- A
X1JET HP (Standard)
3-button operation with LED indicator lamps; layouts and parameters transferred by USB stick.
Applications
Where it is used
- Date & batch coding Manufacturing and expiry dates, batch and lot numbers on packs, pouches, foil and labels. Used in Food & beverage, Pharmaceutical, Chemicals, Timber & wood Explore
- Barcode & 2D code printing 1D barcodes and DataMatrix codes with counters, date offsets and variable data. Used in Pharmaceutical, Food & beverage, Building materials Explore
In real use
-

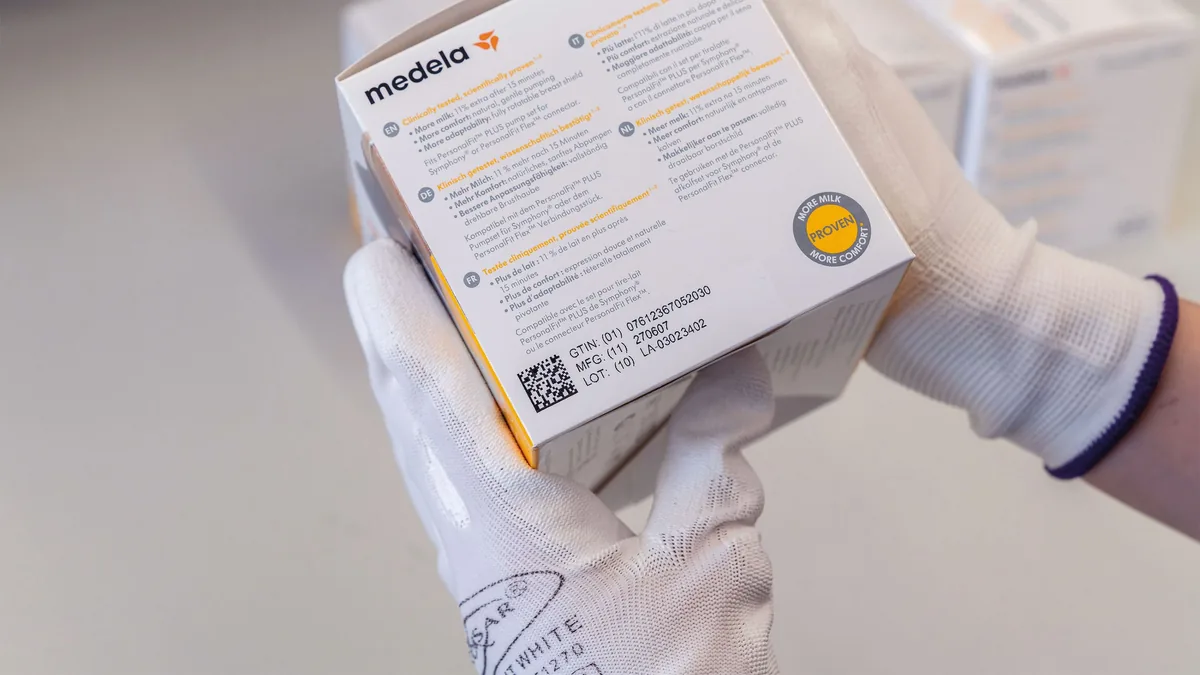

2D code printed by the Markoprint X1JET HP Standard on medication packaging
Photos: manufacturer (Markoprint) application examples.
Capabilities
What can you print?
Content X1JET HP can print, as stated in its specification — with generated samples for illustration.
- Text & logosAll configurations
- Date / timeBasic configuration and above
- Counter & date offsetAdvanced configuration and above
- 1D barcodesAdvanced and Pro configurations
- 2D codesPro configuration
- DBPrintPro configuration
EXP 09/2028
SN 0142
Illustrations generated by PACODE to show the kinds of content X1JET HP can print according to its specifications — not photographs of actual print output. Sample data is fictitious.
Materials
Suitable materials
Only surfaces and inks stated in PACODE’s or the manufacturer’s published information are listed.
Surfaces
-
Absorbent and semi-absorbent surfaces.
Source: PACODE website — previous product page (/x1jet-hp/)
Inks
-
Water- and solvent-based inks are listed as accessories.
Source: PACODE website — previous product page (/x1jet-hp/)
Why X1JET HP
Features and what they mean for your line
- 01
All-in-one unit
Controller and printhead in one small, durable case of milled and anodised aluminium.
- 02
Automatic print trigger
An integrated photo sensor starts each print; external sensor and rotary encoder inputs are also provided.
- 03
Fast cartridge changes
The patented Click’n Print holder and SmartCard recognition set the ink parameters automatically.
- 04
Simple operation
3-button operation with LED indicator lamps, and variable control via interface.
Specifications
Technical data
Compare Thermal inkjet models| Specification | X1JET HP | X1JET HP Premium |
|---|---|---|
| Supported printing technology | HP | HP |
| Max. number of printheads | 1 | 1 |
| Max. number of production lines | 1 | 1 |
| Display | No | No |
| Dimensions in mm (length/width/height) | 118/75/95 | 118/75/95 |
| Weight in kg | 0.6 | 0.6 |
| IP Protection | IP40 | IP40 |
| Max. printing height in mm | 12.5 | 12.5 |
| External sensor | Yes | Yes |
| Internal sensor | Yes | Yes |
| Rotary encoder | Yes | Yes |
| Status/alarm outputs | 4 | 4 |
| Potential free contacts | No | No |
| Inputs | 4 | 4 |
| USB A for USB stick | Yes | Yes |
| USB interface | No | No |
| EIA 232 | Yes | Yes |
Source: PACODE website — “Specifications & Comparison (X1JET systems)” table
| Specification | Basic | Advanced | Pro | Ultimate HiS** | |
|---|---|---|---|---|---|
| Max. printing speed in m/min (with 300 dpi) | 30 | 30 | 60 | 90/60* | 90/60*/180 |
| Max. print resolution (horizontal) | 50-900 | 50-900 | 50-900 | 50-900 | 50-900 |
| Max. print resolution (vertical) | 300 | 300 | 300/600 | 300/600 | 300/600 |
| Layout length in m | 1 | 1 | 1 | 2 | 4 |
| Text / Logos | Yes | Yes | Yes | Yes | Yes |
| Counter | No | No | Yes | Yes | Yes |
| Date / Time | No | Yes | Yes | Yes | Yes |
| Date offset | No | No | Yes | Yes | Yes |
| Variables | No | No | with HMI | with HMI | with HMI |
| Action fields | No | No | Yes | Yes | Yes |
| Barcodes (1D) | No | No | Yes | Yes | Yes |
| 2D Codes | No | No | No | Yes | Yes |
| USB stick data transfer | Yes | Yes | Yes | Yes | Yes |
| Ethernet interface | Yes | Yes | Yes | Yes | Yes |
| EIA232 | Yes | Yes | Yes | Yes | Yes |
| Password Protection | No | No | No | No | Yes |
| Configurable inputs | Yes | Yes | Yes | Yes | Yes |
| DBPrint | No | No | No | Yes | Yes |
* Maximum recommended speed for barcode applications (as defined in PACODE’s comparison tables).
** The “HiS” footnote is not defined on the current PACODE website.
Source: PACODE website — “Specifications & Comparison (X1JET systems)” table
Integration & connectivity
- Interfaces: USB A (USB stick), EIA 232 and Ethernet.
- 4 configurable inputs and 4 status/alarm outputs.
- External sensor, internal photo sensor and rotary encoder.
- PLC or external photo sensor connection via the options interface (datasheet).
- Layout software: iDesign (datasheet); DBPrint in the Pro configuration.
