MarkoprintThermal Inkjet Printers

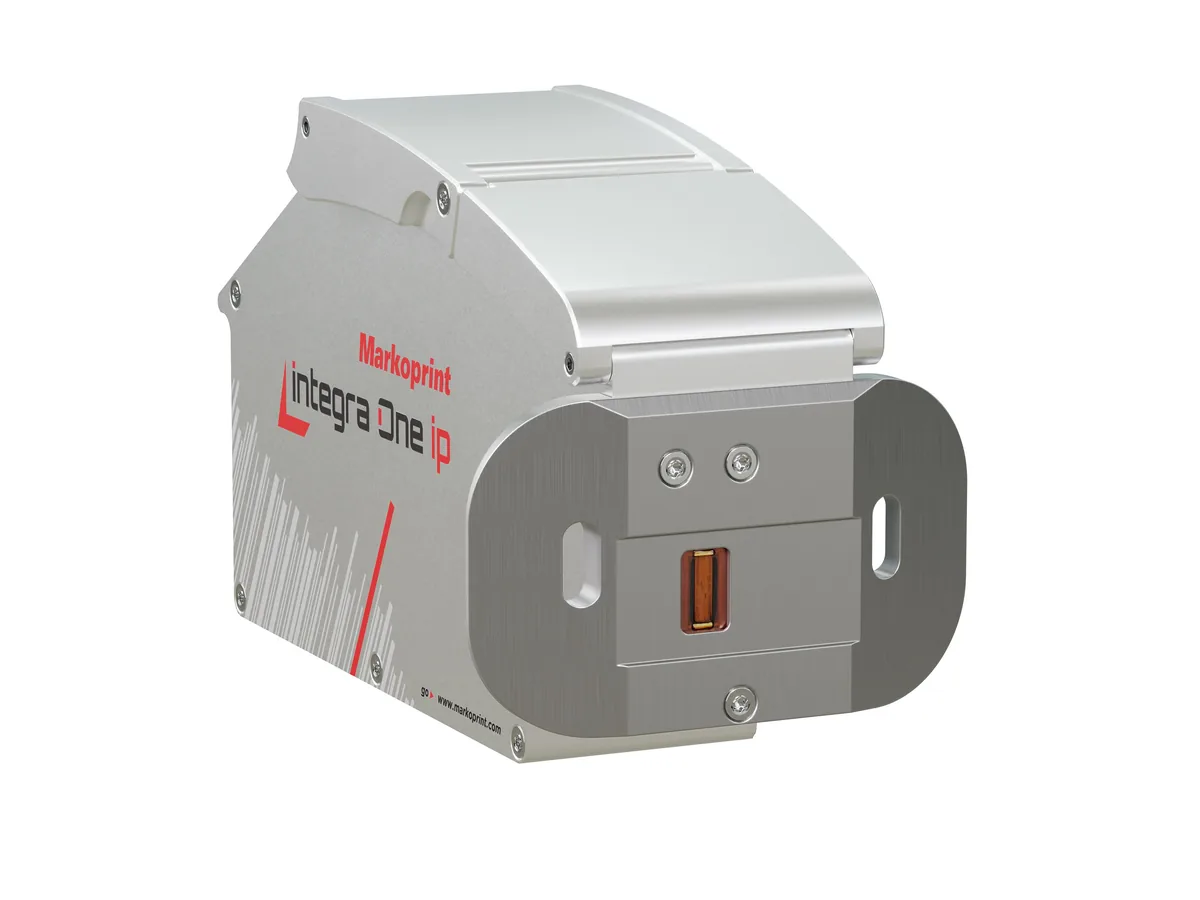

Markoprint Integra One / One IP
An HP Class thermal inkjet printer with OLED display, designed for integration into production systems — the One IP version adds IP65 protection.
- Made for integration
- On-board display
- Codes at speed
- IP65 option
Available asIntegra OneIntegra One IP
- Technology
- HP Class TIJ
- Resolution
- Up to 600 dpi
- Max. speed
- 180 m/min (Pro)
- Printheads
- 1
- Protection
- IP40 · IP65 (One IP)
- Display
- OLED
Overview
What Integra One / One IP does
Integra One is built for system integrators: its small footprint fits into production machinery, and an OLED display lets operators enter, change and check settings at the printer. An optional WLAN version shows the same information on mobile devices.
It prints logos, variable text, barcodes and DataMatrix codes at up to 600 dpi, with water- and/or solvent-based inks for absorbent and non-absorbent surfaces. SmartCard monitoring and the Click’n Print holder simplify cartridge changes. Integra One IP adds IP65 protection, which PACODE recommends for food-industry applications.
- A
Integra One
Print, Basic, Advanced and Pro configurations; IP40; OLED display.
- B
Integra One IP
Pro configuration with IP65 protection — for applications in the food industry.
Applications
Where it is used
- Date & batch coding Manufacturing and expiry dates, batch and lot numbers on packs, pouches, foil and labels. Used in Food & beverage, Pharmaceutical, Chemicals, Timber & wood Explore
- Barcode & 2D code printing 1D barcodes and DataMatrix codes with counters, date offsets and variable data. Used in Pharmaceutical, Food & beverage, Building materials Explore
Capabilities
What can you print?
Content Integra One / One IP can print, as stated in its specification — with generated samples for illustration.
- Text, logos & date / timeAll configurations
- Counter, date offset, variablesPrint, Advanced and Pro configurations
- Barcodes (1D/2D) incl. DataMatrixAdvanced and Pro configurations
- DBPrint & password protectionPro configuration
EXP 09/2028
SN 0142
Illustrations generated by PACODE to show the kinds of content Integra One / One IP can print according to its specifications — not photographs of actual print output. Sample data is fictitious.
Materials
Suitable materials
Only surfaces and inks stated in PACODE’s or the manufacturer’s published information are listed.
Surfaces
-
Absorbent and non-absorbent surfaces, with water- and/or solvent-based inks.
Source: PACODE website — previous product page (/integra-one-ip-2/)
Why Integra One / One IP
Features and what they mean for your line
- 01
Made for integration
Small dimensions for integration into production systems.
- 02
On-board display
Enter, modify and verify settings at the printer; optional WLAN for mobile devices.
- 03
Codes at speed
Up to 180 m/min in the Pro configuration (60 m/min for barcodes).
- 04
IP65 option
Integra One IP is protected for wet and food-industry environments.
Specifications
Technical data
Compare Thermal inkjet models| Specification | integra One Print | integra One Basic | integra One Advanced | integra One Pro | integra One ip Pro |
|---|---|---|---|---|---|
| Supported printing technology | HP | HP | HP | HP | HP |
| Max. number of printheads | 1 | 1 | 1 | 1 | 1 |
| Display | OLED | OLED | OLED | OLED | OLED |
| Dimensions in mm (length/width/height) | Pending confirmation | Pending confirmation | Pending confirmation | Pending confirmation | 187/92/107 |
| Weight in kg | 0.7 | 0.7 | 0.7 | 0.7 | 1.1 |
| IP Protection | IP40 | IP40 | IP40 | IP40 | IP65 |
| External sensor | Yes | Yes | Yes | Yes | Yes |
| Internal sensor | + / – | + / – | + / – | + / – | + / – |
| Rotary encoder | Yes | Yes | Yes | Yes | Yes |
| Status/alarm outputs | 3 | 3 | 3 | 5 | 5 |
| Potential free contacts | No | No | No | No | No |
| Inputs | 3 | 3 | 3 | 5 | 5 |
| USB interface | USB-C | USB-C | USB-C | USB-C | USB-C |
| EIA 232 | Yes | Yes | Yes | Yes | Yes |
| Max. printing speed in m/min (with 300 dpi) | 60 | 30 | 90/60* | 180/60* | 180/60* |
| Max. print resolution (horizontal) | 50-900 | 50-900 | 50-900 | 50-900 | 50-900 |
| Max. print resolution (vertical) | 300 / 600 | 300 / 600 | 300 / 600 | 300 / 600 | 300 / 600 |
| Layout length in m | 2 | 2 | 2 | 6 | 6 |
| Number of layouts | unlimited | unlimited | unlimited | unlimited | unlimited |
| Text / Logos | Yes | Yes | Yes | Yes | Yes |
| Counter | Yes | No | Yes | Yes | Yes |
| Date / Time | Yes | Yes | Yes | Yes | Yes |
| Date offset | Yes | No | Yes | Yes | Yes |
| Variables | Yes | No | Yes | Yes | Yes |
| Action fields | No | No | Yes | Yes | Yes |
| Barcodes (1D/2D) | No | No | Yes | Yes | Yes |
| Ethernet interface | No | Yes | Yes | Yes | Yes |
| Password Protection | No | No | No | Yes | Yes |
| Configurable inputs | + / – | + / – | + / – | Yes | Yes |
| DBPrint | No | No | No | Yes | Yes |
* Maximum recommended speed for barcode applications (as defined in PACODE’s comparison tables).
Source: PACODE website — “Comparison of our Premium Systems” table
Integration & connectivity
- Designed for system integrators and integration into production systems.
- Interfaces: USB-C and EIA 232; Ethernet in Basic, Advanced and Pro; optional WLAN.
- 3 inputs / 3 outputs (Print, Basic, Advanced) or 5 / 5 (Pro, One IP).
- External sensor and rotary encoder.
Being confirmed
- Max. print height: being confirmed with the manufacturer — contact PACODE for the current value.
- Integra One dimensions: being confirmed with the manufacturer — contact PACODE for the current value.
