MarkoprintThermal Inkjet Printers

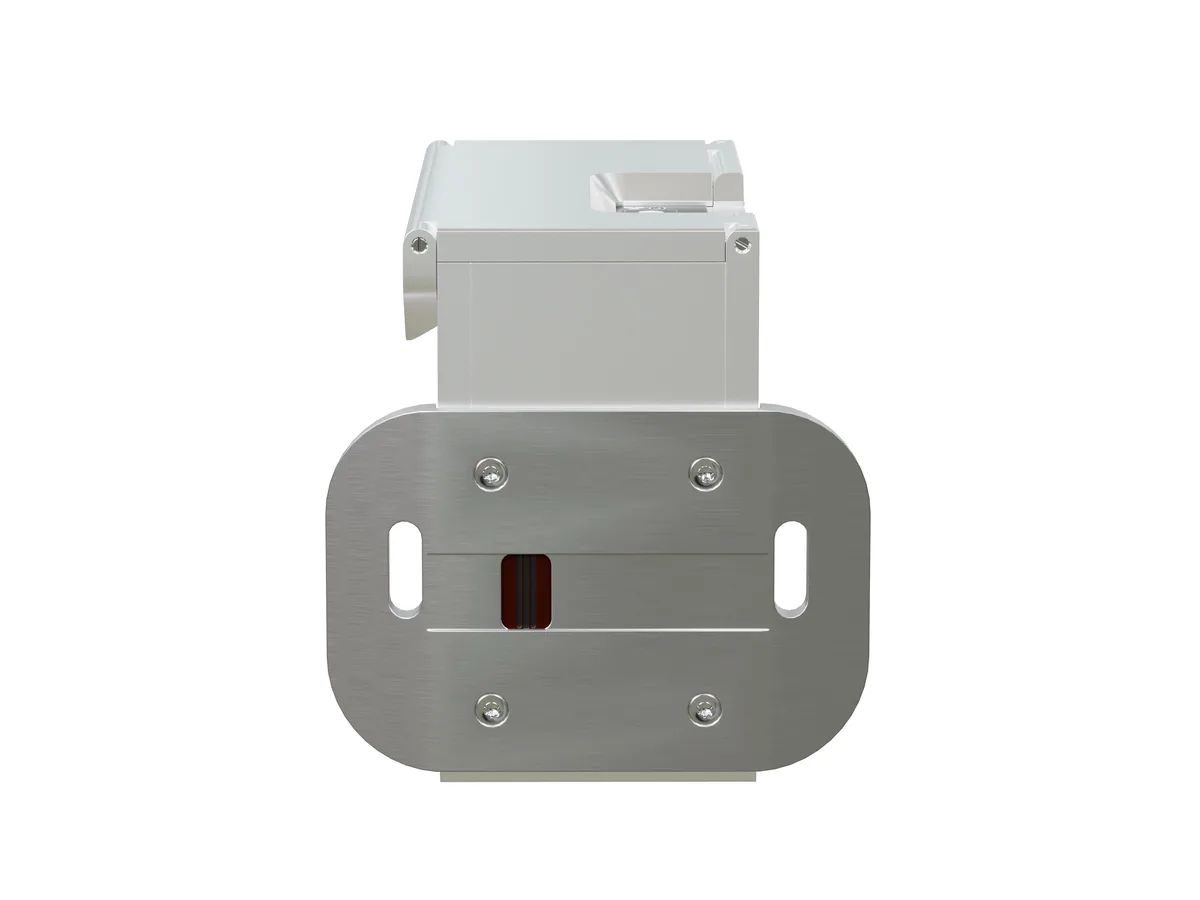

Markoprint IP-JET HP
A sealed, pressurised all-in-one thermal inkjet printer rated IP65 — built for dusty and wet production areas.
- IP65 all-in-one
- Wet cleaning
- Codes and dates
- Simple cartridge handling
- Technology
- HP Class TIJ
- Resolution
- Up to 600 dpi
- Max. speed
- 180 m/min (Ultimate)
- Printheads
- 1
- Protection
- IP65
- Connectivity
- EIA 232 and Ethernet (no USB interface)
Overview
What IP-JET HP does
IP-JET HP combines printhead and control unit in one sealed system. The cartridge is sealed and pressurised so water and dust cannot enter; the housing is rated IP65, the external connectors IP67, and the power connector is waterproof.
It prints text, barcodes, 2D codes, best-before dates and batch numbers at up to 600 dpi on paper, cardboard, painted surfaces, foils and plastics. PACODE lists it for the food, plastics, pharmaceutical and chemical industries. The printhead can be wet-cleaned without covering or dismantling.
Applications
Where it is used
- Date & batch coding Manufacturing and expiry dates, batch and lot numbers on packs, pouches, foil and labels. Used in Food & beverage, Pharmaceutical, Chemicals, Timber & wood Explore
- Barcode & 2D code printing 1D barcodes and DataMatrix codes with counters, date offsets and variable data. Used in Pharmaceutical, Food & beverage, Building materials Explore
Capabilities
What can you print?
Content IP-JET HP can print, as stated in its specification — with generated samples for illustration.
- Text, logos, counter, date / time, date offsetPro / Ultimate
- Barcodes (1D/2D)Pro / Ultimate
- DBPrintPro / Ultimate
- Stored layouts9 (Pro) / 25 (Ultimate)
EXP 09/2028
SN 0142
Illustrations generated by PACODE to show the kinds of content IP-JET HP can print according to its specifications — not photographs of actual print output. Sample data is fictitious.
Materials
Suitable materials
Only surfaces and inks stated in PACODE’s or the manufacturer’s published information are listed.
Surfaces
-
Paper, cardboard, painted surfaces, foils and plastics.
Source: PACODE website — previous product page (/ip-jet-hp-2/)
Inks
-
Water-based and solvent-based inks.
Source: PACODE website — previous product page (/ip-jet-hp-2/)
Why IP-JET HP
Features and what they mean for your line
- 01
IP65 all-in-one
Sealed, pressurised cartridge; IP67 external connectors; waterproof power connector.
- 02
Wet cleaning
No need to cover or dismantle the printhead.
- 03
Codes and dates
Texts, barcodes, 2D codes, best-before dates and batch numbers.
- 04
Simple cartridge handling
SmartCard monitoring and Click’n Print holder; 3-button operation with LED status lights.
Specifications
Technical data
Compare Thermal inkjet models| Specification | IP-JET Pro / Ultimate |
|---|---|
| Supported printing technology | HP |
| Max. number of printheads | 1 |
| Display | No |
| Dimensions in mm (length/width/height) | 102/99/144 |
| Weight in kg | 1.1 |
| IP Protection | IP65 |
| External sensor | Yes |
| Internal sensor | No |
| Rotary encoder | Yes |
| Status/alarm outputs | 4 |
| Potential free contacts | No |
| Inputs | 4 |
| USB interface | No |
| EIA 232 | Yes |
| Max. printing speed in m/min (with 300 dpi) | 90/60* / 180/60* |
| Max. print resolution (horizontal) | 50-900 |
| Max. print resolution (vertical) | 300 / 600 |
| Layout length in m | 2 / 4 |
| Number of layouts | 9 / 25 |
| Text / Logos | Yes |
| Counter | Yes |
| Date / Time | Yes |
| Date offset | Yes |
| Variables | No |
| Action fields | Yes |
| Barcodes (1D/2D) | Yes |
| Ethernet interface | Yes |
| Password Protection | No |
| Configurable inputs | Yes |
| DBPrint | Yes |
* Maximum recommended speed for barcode applications (as defined in PACODE’s comparison tables).
Source: PACODE website — “Comparison of our Premium Systems” table
Integration & connectivity
- Interfaces: EIA 232 and Ethernet (no USB interface).
- 4 inputs and 4 status/alarm outputs; external sensor and rotary encoder.
Being confirmed
- Max. print height: being confirmed with the manufacturer — contact PACODE for the current value.
Media
See it in operation
Videos are published by the manufacturer on YouTube and load only when you press play.
