MarkoprintThermal Inkjet Printers
Markoprint X1JET LX
A cost-effective all-in-one inkjet coder with LX Class printing technology and a double-nozzle-row printhead for high-resolution prints.
- Cost-effective entry system
- High-resolution prints
- Ink memory
- Simple operation
- Technology
- LX Class inkjet
- Max. print height
- 12.5 mm
- Resolution
- Up to 600 dpi
- Max. speed
- 90 m/min (Pro)
- Printheads
- 1
- Connectivity
- USB A (USB stick), EIA 232 and Ethernet
Overview
What X1JET LX does

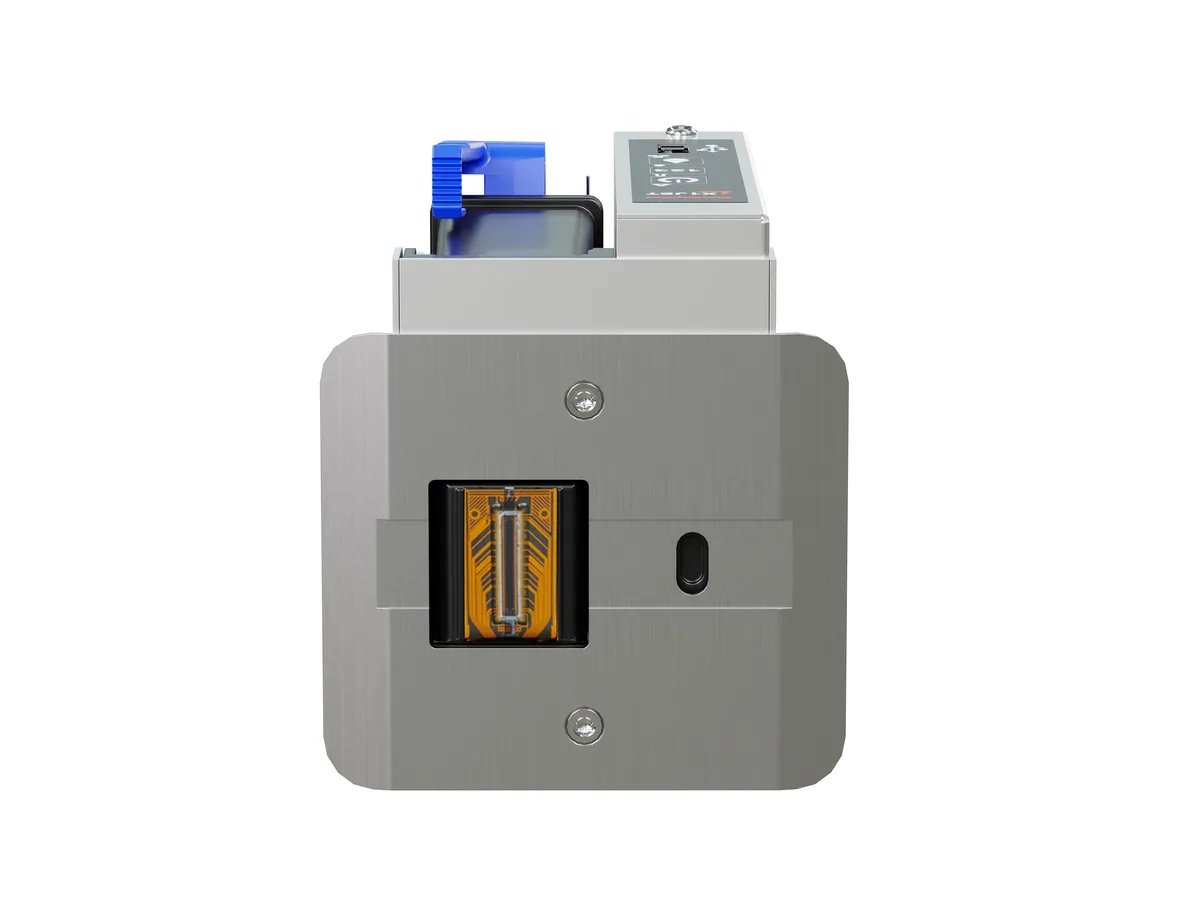

X1JET LX is PACODE’s entry system in the X1JET family: printhead and print controller share one milled, anodised aluminium housing, with a double nozzle row for high-resolution prints.
Internal memory recognises the ink type and stores the fill level, and an integrated photo sensor starts printing automatically. Layouts and parameters are transferred by USB stick, with variable control via interface.
Applications
Where it is used
- Date & batch coding Manufacturing and expiry dates, batch and lot numbers on packs, pouches, foil and labels. Used in Food & beverage, Pharmaceutical, Chemicals, Timber & wood Explore
- Barcode & 2D code printing 1D barcodes and DataMatrix codes with counters, date offsets and variable data. Used in Pharmaceutical, Food & beverage, Building materials Explore
In real use
-
Code printed by the Markoprint X1JET LX on a folding box
Photos: manufacturer (Markoprint) application examples.
Capabilities
What can you print?
Content X1JET LX can print, as stated in its specification — with generated samples for illustration.
- Text & logosAll configurations
- Date / timeBasic configuration and above
- Counter & date offsetAdvanced configuration and above
- 1D barcodesAdvanced and Pro configurations
- 2D codesPro configuration
- DBPrintPro configuration
Illustrations generated by PACODE to show the kinds of content X1JET LX can print according to its specifications — not photographs of actual print output. Sample data is fictitious.
Why X1JET LX
Features and what they mean for your line
- 01
Cost-effective entry system
Small and compact, with controller and printhead all in one.
- 02
High-resolution prints
Double nozzle row printhead.
- 03
Ink memory
Automatic ink-type detection and fill-level storage.
- 04
Simple operation
3-button operation with LED indicator lamps; USB-stick transfer.
Specifications
Technical data
Compare Thermal inkjet models| Specification | X1JET LX |
|---|---|
| Supported printing technology | LX |
| Max. number of printheads | 1 |
| Max. number of production lines | 1 |
| Display | No |
| Dimensions in mm (length/width/height) | 118/82/96 |
| Weight in kg | 0.6 |
| IP Protection | IP40 |
| Max. printing height in mm | 12.5 |
| External sensor | Yes |
| Internal sensor | Yes |
| Rotary encoder | Yes |
| Status/alarm outputs | 4 |
| Potential free contacts | No |
| Inputs | 4 |
| USB A for USB stick | Yes |
| USB interface | No |
| EIA 232 | Yes |
Source: PACODE website — “Specifications & Comparison (X1JET systems)” table
| Specification | Basic | Advanced | Pro | Ultimate HiS** | |
|---|---|---|---|---|---|
| Max. printing speed in m/min (with 300 dpi) | 30 | 30 | 60 | 90 | No |
| Max. print resolution (horizontal) | 50-900 | 50-900 | 50-900 | 50-900 | 50-900 |
| Max. print resolution (vertical) | 300 | 300 | 300/600 | 300/600 | 300/600 |
| Layout length in m | 1 | 1 | 1 | 2 | 4 |
| Text / Logos | Yes | Yes | Yes | Yes | Yes |
| Counter | No | No | Yes | Yes | Yes |
| Date / Time | No | Yes | Yes | Yes | Yes |
| Date offset | No | No | Yes | Yes | Yes |
| Variables | No | No | with HMI | with HMI | with HMI |
| Action fields | No | No | Yes | Yes | Yes |
| Barcodes (1D) | No | No | Yes | Yes | Yes |
| 2D Codes | No | No | No | Yes | Yes |
| USB stick data transfer | Yes | Yes | Yes | Yes | Yes |
| Ethernet interface | Yes | Yes | Yes | Yes | Yes |
| EIA232 | Yes | Yes | Yes | Yes | Yes |
| Password Protection | No | No | No | No | Yes |
| Configurable inputs | Yes | Yes | Yes | Yes | Yes |
| DBPrint | No | No | No | Yes | Yes |
* Maximum recommended speed for barcode applications (as defined in PACODE’s comparison tables).
** The “HiS” footnote is not defined on the current PACODE website.
Source: PACODE website — “Specifications & Comparison (X1JET systems)” table
Integration & connectivity
- Interfaces: USB A (USB stick), EIA 232 and Ethernet.
- 4 inputs and 4 status/alarm outputs; external and internal sensor; rotary encoder.
